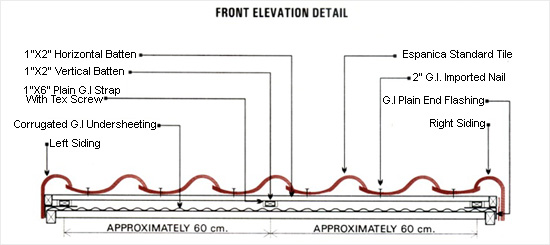

CONTRUCTION DETAILS WITH CORRUGATED UNDERSHEETING

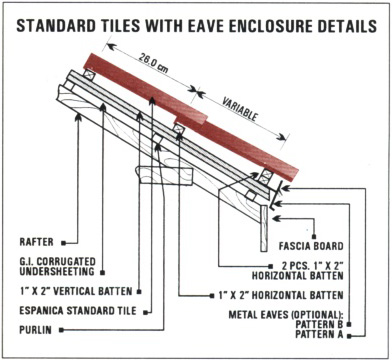

KE 1: Standard Tile
15 pcs / Sqm 3.1 kg / pc

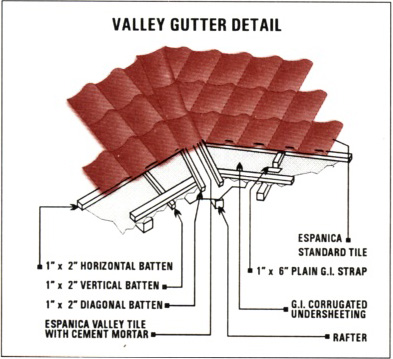

KE5: Valley tiles(1/2 ending)
4pcs / L.m. 2.5 kg / pc
KE 3: Left Siding
4 pcs / L.m. 2.6 kg / pc
KE 4: Right Siding
4 pcs / L.m. 2.6 kg / pc
KE 3ha: Left siding end
per pcs 2.5 kg / pc
KE 4ha: Right siding end
per pcs 2.5 kg / pc

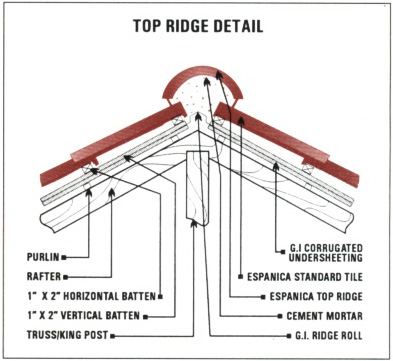

Ke 2: Top Ridge
4 pcs / L.m. 3.0 kg / pc
Ke 7b: Top Ridge End
per pc 4.35 kg / pc
KE 6: Top Ridge down end
per pc 4.35 kg / pc
KE 8a: Y Ridge
per pc 4.35 kg / pc
Ke 10a: Corner Ridge
per pc 4.5 kg / pc
Ke 11: 4 Way Ridge
per pc 5 kg / pc
Ke 1: Standard Tile with Down end
4 pcs / L.m. 3.5 kg / pc
