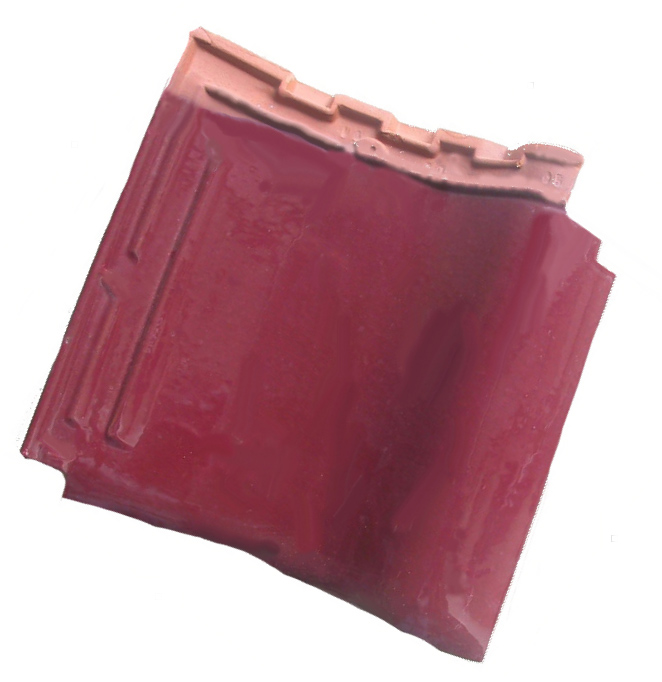

HISPANICA ROOF TILE
  Products Profile
Length
322 / mm
Effective Leght
266 / mm
Width
312 / mm
Effective width
270 / mm
Weight
3150 / gram
Bending Failing Load
> 150 / kgf
Water Absorption
> 8 %
Quantity / (per Sqm)
15.0 pcs.
Batten Distance
267 / mm
Quantity per Sqm
14 / pcs

KANMURI ROOF TILES

- Strong and Durable. No wrapping and no crack against extreme weather changes.

- Elegant Shape from mould production system enables easy and accurate cutting for edges

-Double hook with nip stabilizer ensures tiles sit securely on batten.

- High grooves prevent water back flow

- Good tile size to prevent easy entrance from roof.


- Product range

-Kanmuri has 2 tiles profiles: Espanica and Milenio
-Both profiles come with the full range of accessories, most of which are common.
- Currently, Kanmuri produces in 19 color with more additions expected.
- Accept special color request.

TECHNICAL COMPLIANCES
Test parameters
SS 70:1999
Kanmuri Test Results
Transverse Breaking Strength
Min 900 N on average
Average 4962 N
Porosity (Water Absorption)
Max 8% on average 24 hours immersion
Average 6.8%
Permeability
No water drips form underside of tiles after 6 hours
Passed
Tile Squareness
No exceed 1.5 % of overall length of tile
Passed
Glazed Tiles (Colourfastness to ultra violet rays)
No detectable color change on color surface
Passed
